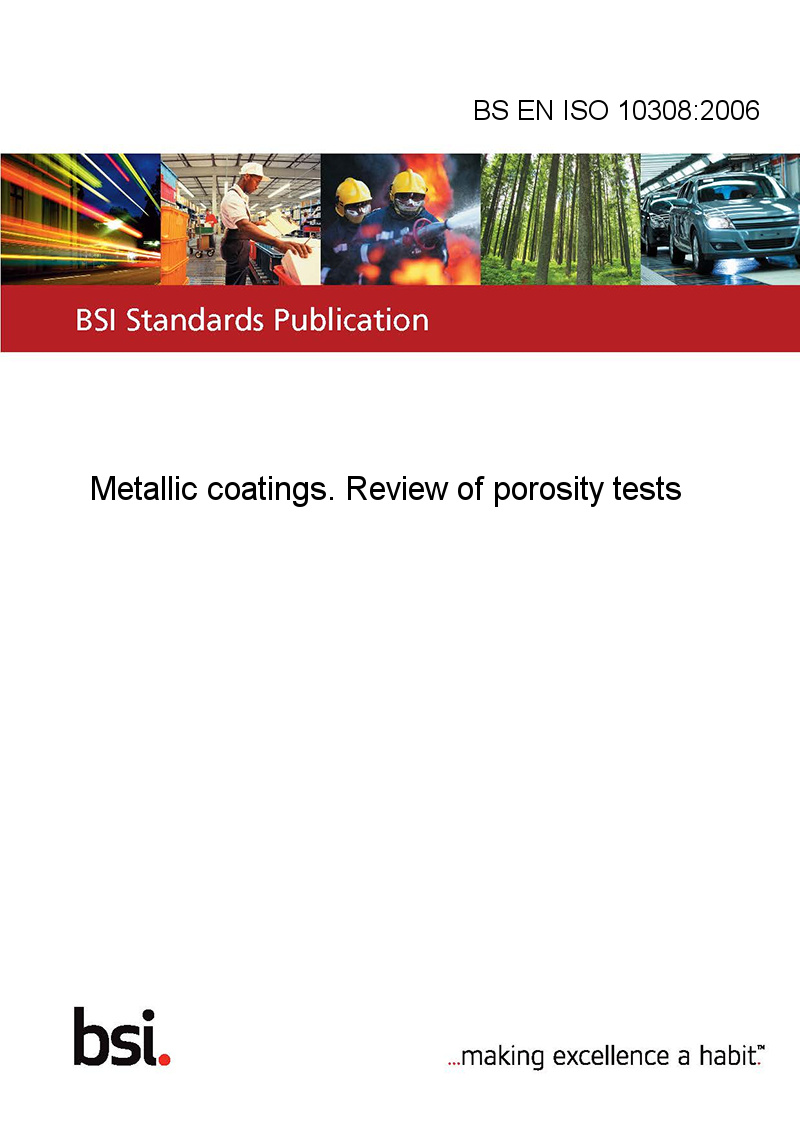

BS EN ISO 10308:2006

This standard BS EN ISO 10308:2006 Metallic coatings. Review of porosity tests is classified in these ICS categories:

• 25.220.40 Metallic coatings

This International Standard reviews published methods for revealing pores (see ISO 2080) and discontinuities in coatings of aluminium, anodized aluminium, brass, cadmium, chromium, cobalt, copper, gold, indium, lead, nickel, nickel-boron, nickel-cobalt, nickel-iron, nickel-phosphorus, palladium, platinum, vitreous or porcelain enamel, rhodium, silver, tin, tin-lead, tin-nickel, tin-zinc, zinc and chromate or phosphate conversion coatings (including associated organic films) on aluminium, beryllium-copper, brass, copper, iron, NiFeCo alloys, magnesium, nickel, nickel-boron, nickel-phosphorus, phosphor-bronze, silver, steel, tin-nickel and zinc alloy basis metal.

The tests summarized in this International Standard are designed to react with the substrate when exposed, by a discontinuity, in such a way as to form an observable reaction product.

NOTE 1 Pores are usually perpendicular to the coating surface but may be inclined to the coating surface. They are frequently cylindrical in shape but may also assume a twisted shape (see Annex C).

NOTE 2 Porosity may vary in size from the submicroscopic, invisible using a light microscope, to the microscopic, visible from × 10 to × 1 000, to the macroscopic, visible to the naked eye.

NOTE 3 Porosity may be visibly indicated by discolouration of the coated surface.

NOTE 4 Porosity in a coating is not always detrimental. In microdiscontinuous chromium, for example, porosity or microcracking is beneficial and tests are conducted to indicate the pores.

NOTE 5 Results obtained from porosity tests, expressed in terms such as pores per square centimeter, are relative values associated with the specific test method used and the magnification used during examination. Annex B gives typical report criteria.
