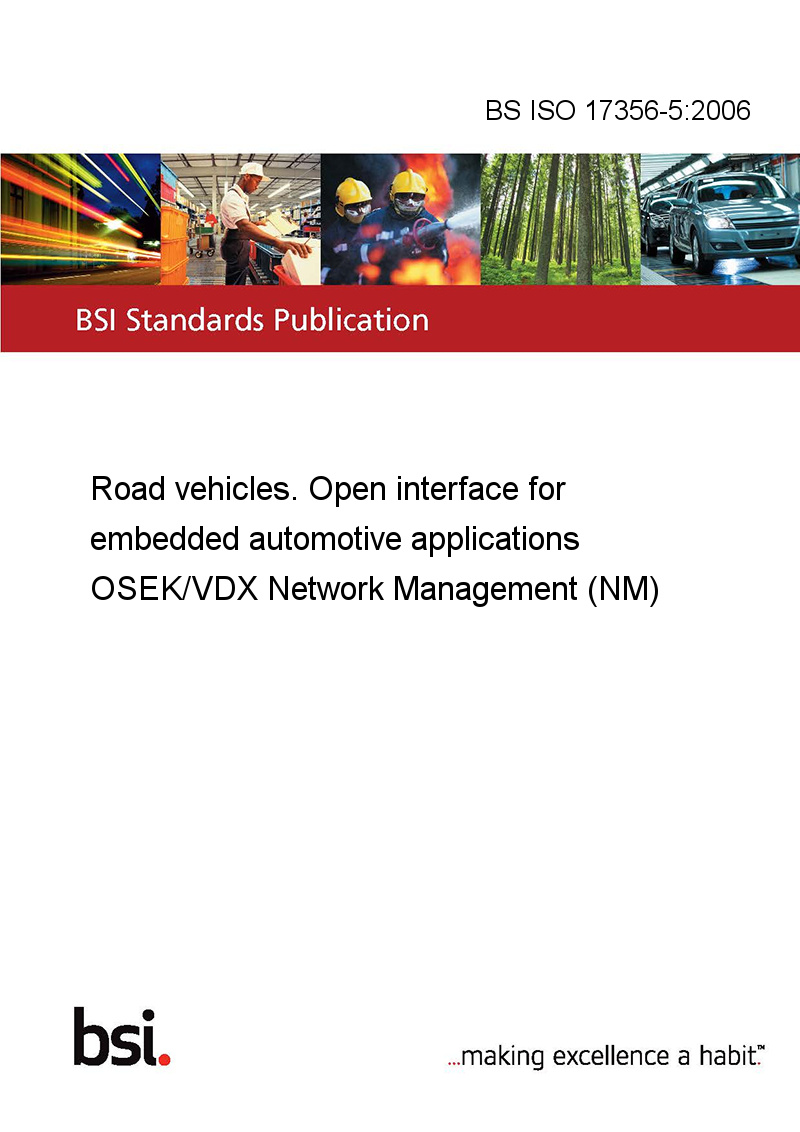

BS ISO 17356-5:2006

This standard BS ISO 17356-5:2006 Road vehicles. Open interface for embedded automotive applications is classified in these ICS categories:

• 43.040.15 Car informatics. On board computer systems

1.1 Embedding of the Network Management (NM)

NM defines a set of services for node monitoring. Figure 1 shows how the NM is embedded into a system and that the NM shall be adapted to specific requirements of the bus system used or to the resources of the nodes.

NM consists of the following:

• interface to interact with the Application Programming Interface(API);

• algorithm for node monitoring;

• internal interfaces (NM <-> COM, etc.);

• algorithm for transition into sleep mode; and

• NM protocol data unit (NMPDU).

1.2 Adaptation to bus protocol specific requirements

Adaptation to bus protocol specific requirements consists of the following:

• CAN, VAN, J1850, K-BUS, D2B, etc.;

• error handling, e.g. bus-off handling in a CAN, transmission line error handling; and

• interpretation of the status information, e.g. overrun or error active/passive in a CAN.

1.3 Adaptation to node resources

Adaptation to node resources consists of the following:

• scaling of the NM as a requirement of the node; and

• application-specific usage of the NM services.

1.4 Adaptation to hardware-specific requirements

This consists of adaptation to a protocol circuit and a physical layer circuit, e.g. switching the bus hardware to one of the possible physically power save modes.

1.5 Station management (system-specific algorithms)

There are a variety of additional tasks involved in coordinating a network. These are not described in ISO 17356, since they are system-dependent. Hence, these tasks are done by the application, e.g. by a module called station management.

1.6 Philosophy of node monitoring

Node monitoring is used to inform the application about the nodes on the network. Thus, the application can check with the appropriate service if all stations required for operation are present on the network.

Figure 1 Responsibility of interface and algorithms

Key

1	API
2	several buses connected to one μController
3	interface to DLL, COM-specific, protocol-specific
4	interface to COM Interaction Layer
5	station management (outside the scope of ISO 17356)
6	algorithms
7	protocol-specific management algorithms
