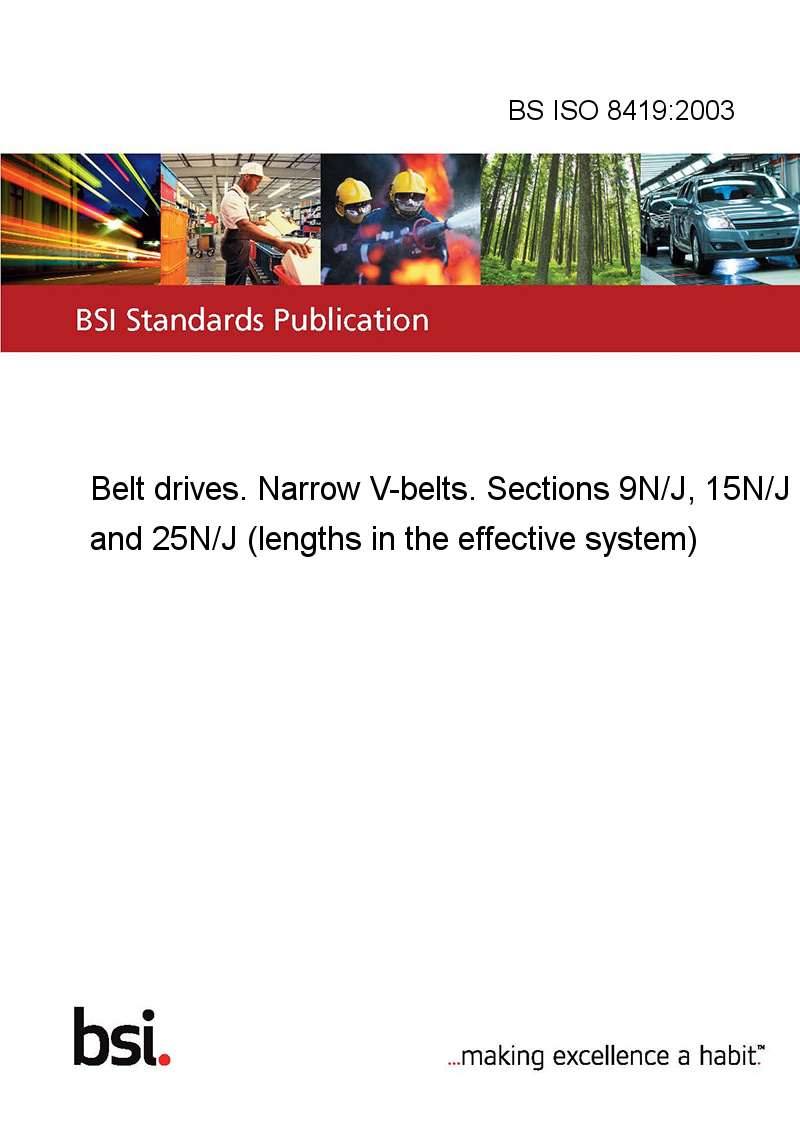

BS ISO 8419:2003

This standard BS ISO 8419:2003 Belt drives. Narrow V-belts. Sections 9N/J, 15N/J and 25N/J (lengths in the effective system) is classified in these ICS categories:

• 21.220.10 Belt drives and their components

This International Standard specifies, for narrow V-belts of cross-sections 9N/J (for pulley grooves of effective width 8,9 mm), 15N/J (for pulley grooves of effective width 15,2 mm) and 25N/J (for pulley grooves of effective width 25,4 mm),

• the standard effective lengths,

• the tolerances on effective lengths,

• the centre distance variations,

• the conditions for measuring the effective length and the centre distance variation, and

• the designation and marking.

NOTE 1 The cross-section of a narrow V-belt is defined by a number (9, 15 or 25) followed by the letter N or J to denote single or joined belts.

NOTE 2 To define belts of raw-edge cogged construction, the letter “X” is added, i.e. NX or JX.
