IEC 61188-5-5:2007

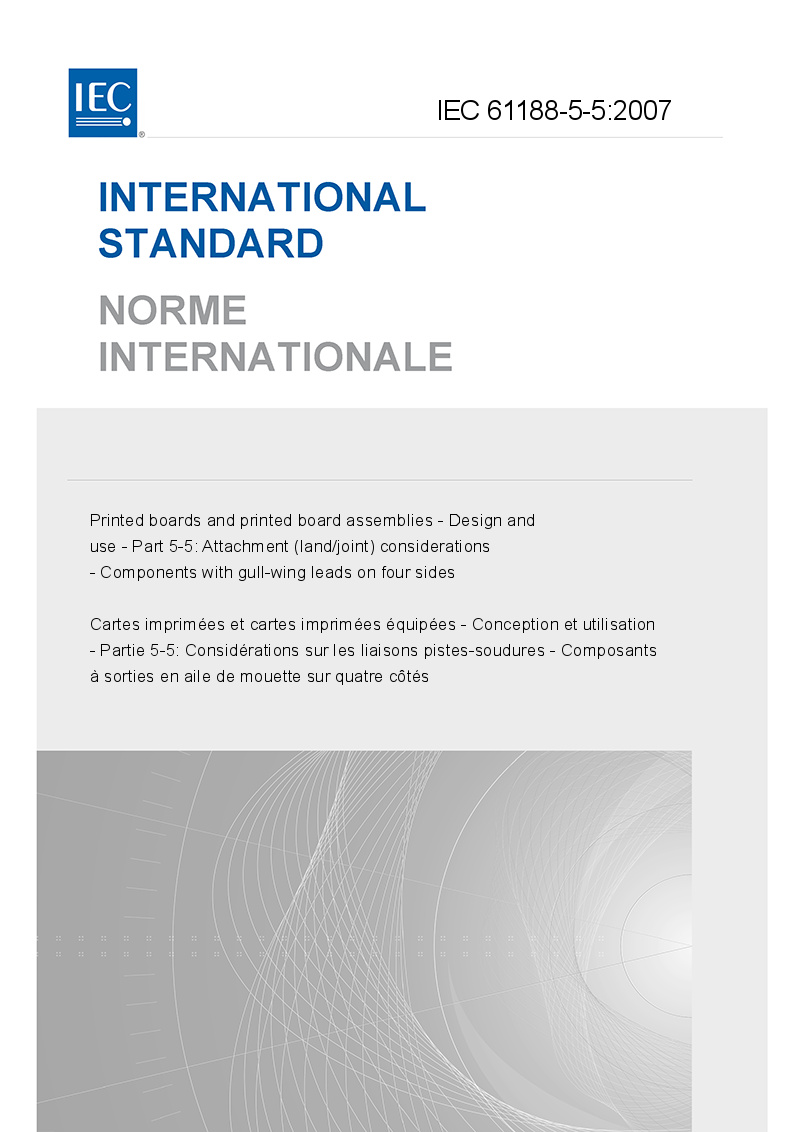

Printed boards and printed board assemblies - Design and use - Part 5-5: Attachment (land/joint) considerations - Components with gull-wing leads on four sides
Cartes imprimées et cartes imprimées équipées - Conception et utilisation - Partie 5-5: Considérations sur les liaisons pistes-soudures - Composants à sorties en aile de mouette sur quatre côtés
Format
Availability
Price and currency
Anglicky Hardcopy
skladem
303.36 €
Anglicky PDF
Immediate download
303.36 €
| Označení normy: | IEC 61188-5-5:2007 |
| Vydáno: | 2007-10-30 |
| Jazyk: | Anglicky |
DESCRIPTION
IEC 61188-5-5:2007
IEC 61188-5-5:2007 provides information on land pattern geometries used for the surface attachment of electronic components with gull-wing leads on four sides. The intent of the information presented herein is to provide the appropriate size, shape and tolerances of surface mount land patterns to ensure sufficient area for the appropriate solder fillet, and also allow for inspection, testing and reworking of those solder joints. This publication is to be read in conjunction with IEC 61188-5-1 :2002.
