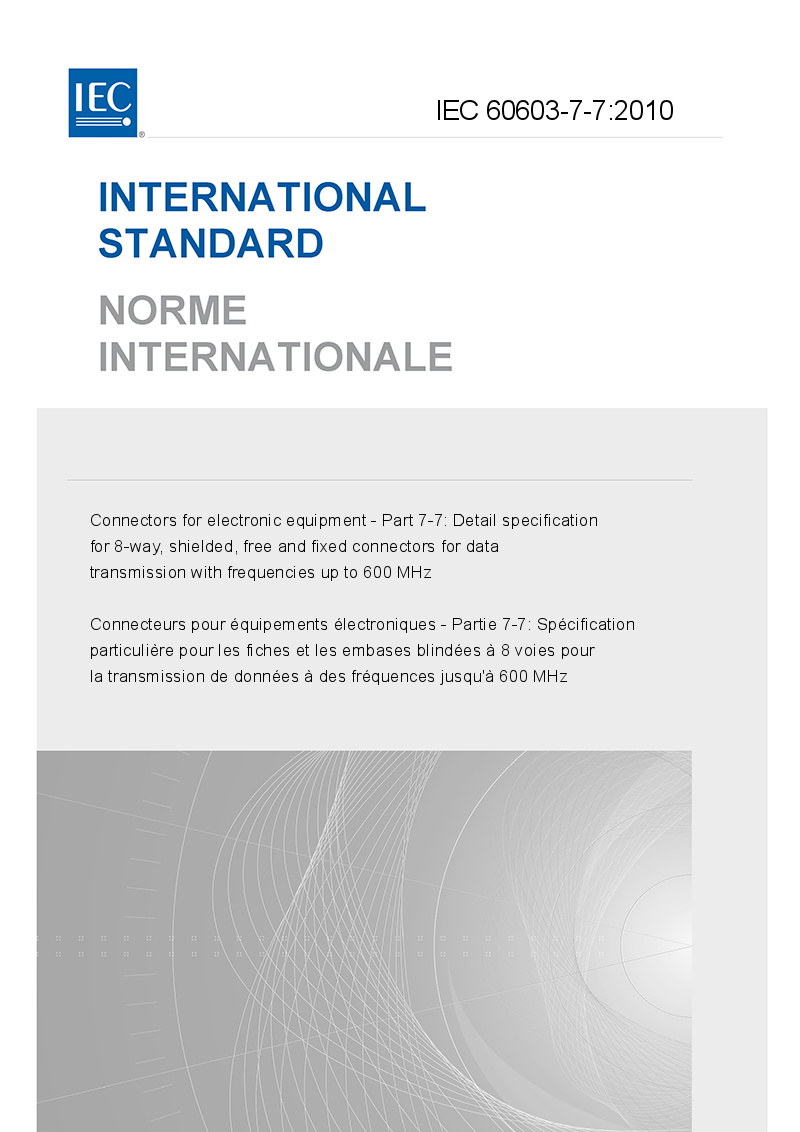

IEC 60603-7-7:2010
Connectors for electronic equipment - Part 7-7: Detail specification for 8-way, shielded, free and fixed connectors for data transmission with frequencies up to 600 MHz
Connecteurs pour équipements électroniques - Partie 7-7: Spécification particulière pour les fiches et les embases blindées à 8 voies pour la transmission de données à des fréquences jusqu'à 600 MHz
| Označení normy: | IEC 60603-7-7:2010 |
| Vydáno: | 2010-05-31 |
| Jazyk: | Anglicky/Francouzsky |
IEC 60603-7-7:2010
IEC 60603-7-7:2010 covers 8-way, shielded, free and fixed connectors, references dimensional, mechanical, electrical and environmental characteristics and tests in IEC 60603-7 and IEC 60603-7-1, and specifies electrical transmission requirements for frequencies up to 600 MHz. These connectors are typically used as category 7 connectors in class F cabling systems specified in ISO/IEC 11801. These connectors are intermateable and interoperable with other IEC 60603-7 series connectors as defined in Clause 2 of IEC 60603-7-1. This third edition of IEC 60603-7-7 cancels and replaces the second edition issued in 2006, and constitutes a technical revision. The main technical changes are as follows: - Removal of test methods that are now referenced to IEC 60512-26-100; - addition of TCL and TCTL requirements and removal of the electrical, mechanical, dimensional, environmental conditioning tests by reference to IEC 60603-7.
