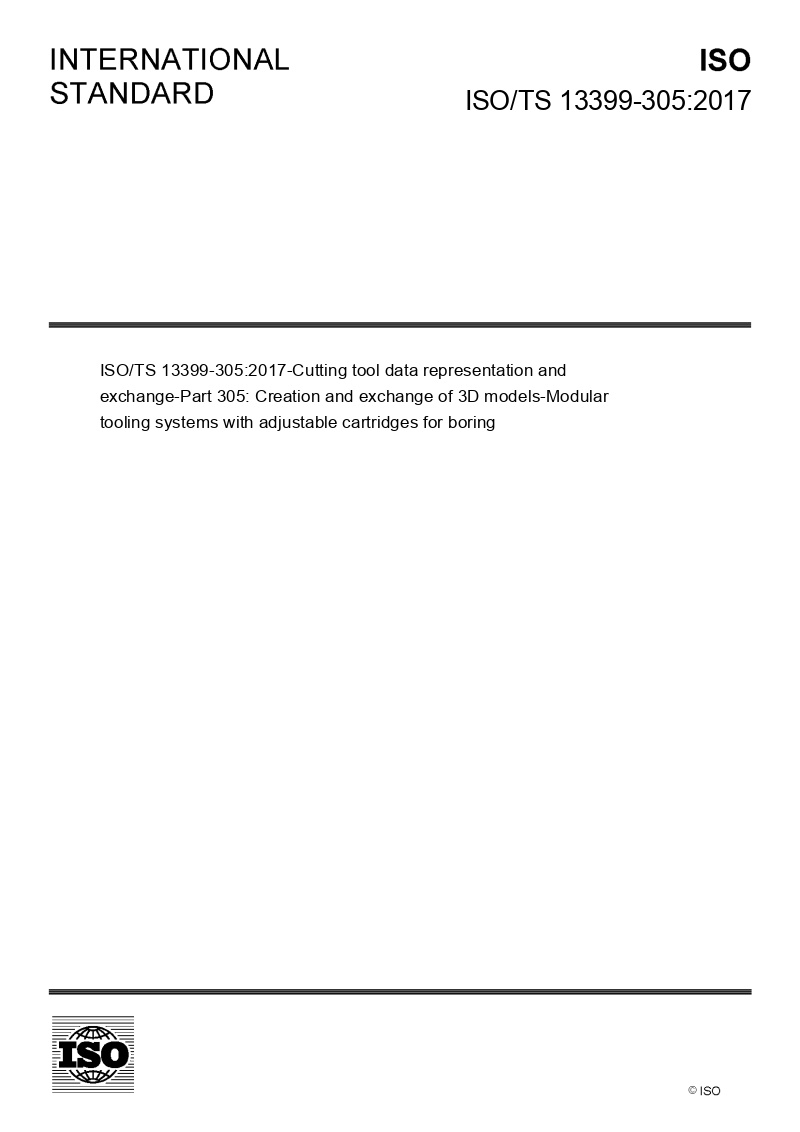

ISO/TS 13399-305:2017

ISO/TS 13399-305:2017 specifies a concept for the design of tool items, for all kinds of modular tooling systems with adjustable cartridges for boring, together with the usage of the related properties and domains of values. ISO/TS 13399-305:2017 specifies a common way of designing simplified models that contain the following: - definitions and identifications of the design features of modular tooling systems with adjustable cartridges for boring, with an association to the used properties; - definitions and identifications of the internal structure of the 3D model that represents the features and the properties of modular tooling systems with adjustable cartridges for boring. The following are outside the scope of this document: a) applications where these standard data may be stored or referenced; b) concept of 3D models for cutting tools; c) concept of 3D models for cutting items; d) concept of 3D models for other tool items not being described in the scope of this document; e) concept of 3D models for adaptive items; f) concept of 3D models for assembly items and auxiliary items.
